Radar Level Transmitter | 3N SHOP

฿18,500.00 Excluding tex

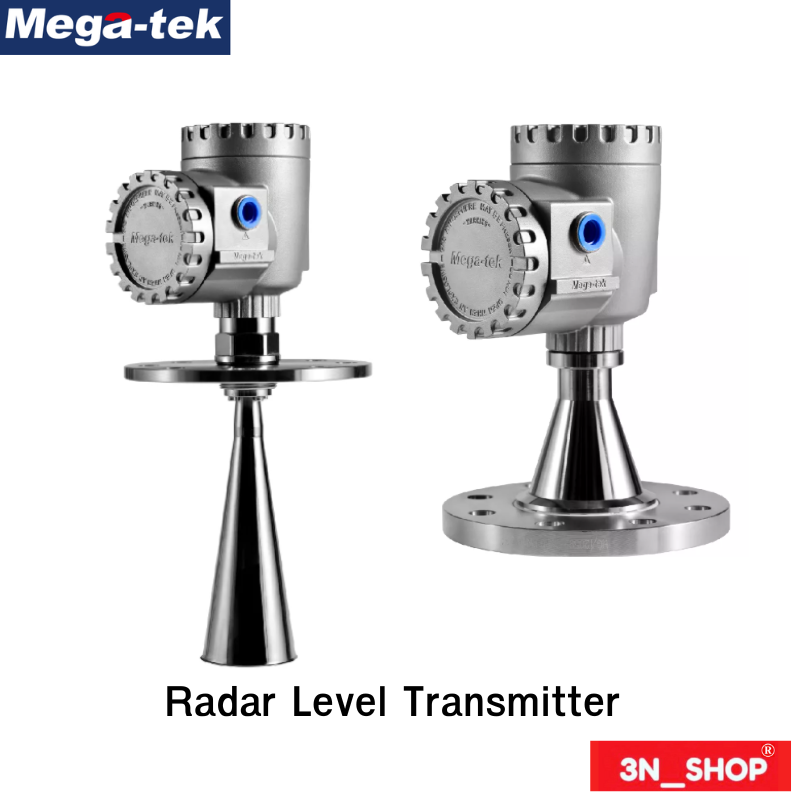

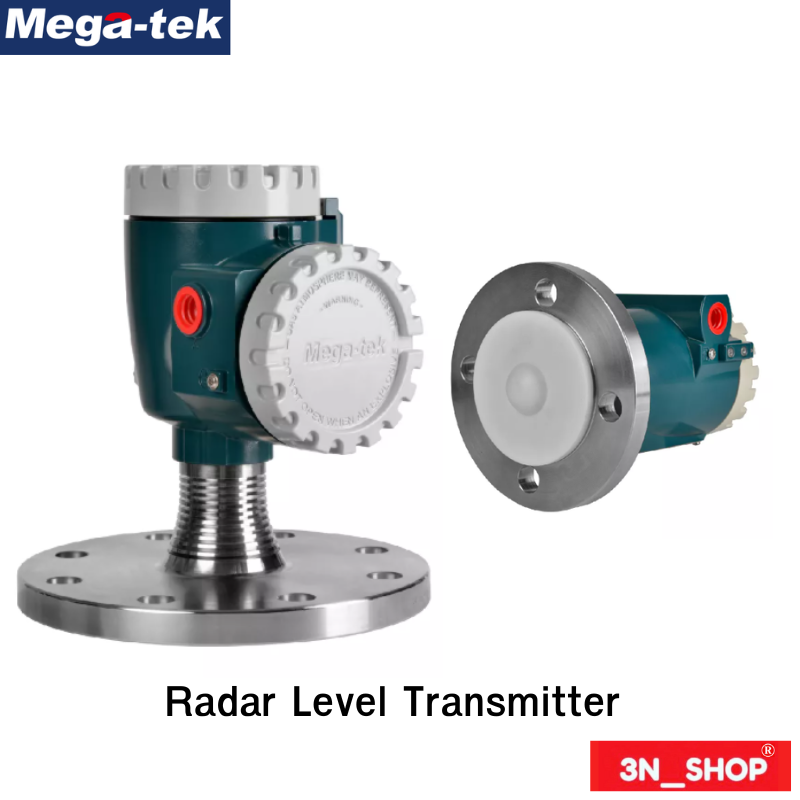

Mega-tek Radar Level Transmitter

  • MG8900 Series
  • Pressure Range 0~32MPa
  • Display Type LCD
  • Accuracy Grade ±0.5mm
  • IP Rating IP67
  • Certification ATEX, NEPSI, SIL, CE
  • Measurement Range 350~150000mm
  • Dielectric Constant >1.4
  • Frequency 80GHz
  • Ambient Temperature -40~85℃
  • Operation Temperature -40~1200℃
  • Output Signal 4~20mA/HART, RS485, FF, PROFIBUS-DP, PROFIBUS-PA
  • Power Supply 24~30V DC, 220V AC (Optional)

Down loads PDF:0-MG8900 SERIES NON-CONTACT RADAR LEVEL TRANSMITTER DATASHEET-3N_shop

รหัสสินค้า: 3N690530 หมวดหมู่: ป้ายกำกับ: , ,

คำอธิบาย

Mega-tek Radar Level Transmitter

MG8900 Series

  •  non-contact radar transmitter adopts advanced signal processing technology, which is derived from unique echo processing technology to provide intelligent echo processing process. The measurement results with high repeatability, rapidity and reliability are obtained.
    A feature of this series of radars is automatic suppression of false echoes. Echo processing technology can automatically detect and suppress false echoes from obstacles in containers. This function can be realized through local interface or through HART and unique software communication with at least two parameters.
    Through radar measurement technology, measurement of non-contact and maintenance free is realized. As the transmission of microwave signal does not require medium, it is not affected by steam, pressure, dust or temperature in the process.
