เซนเซอร์ตรวจจับมาร์คสี color mark sensors lanbao | 3N SHOP

฿5,922.45 lncl sales tax

Specifications

Detection distance 18…28mm
Supply voltage 24VDC±10% Ripple P-P＜10%
Light source Composite LED:Red/Green/Blue(Light source wavelength: 640nm/525nm/470mm)
Output operation Color mark mode: ON when color mark detection; Color mode: ON when consistent
Protection circuit Short circuit protection
Response time ＜200μs
Ambient temperature -10…55℃(No condensing、 No condensation)
Environment humidity 35…85%RH(No condensation)
Housing material Housing: PBT; Operation panel: PC; Operation button: Silica gel; Lens:PC
Connection method 2m cable(0.2mm² 4-pins cable)

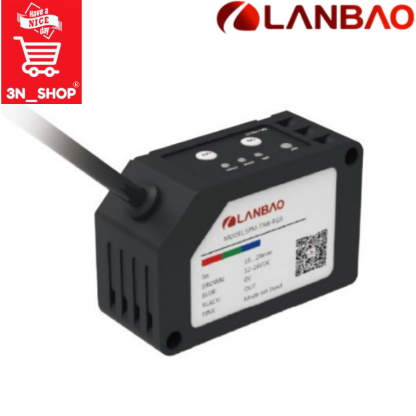

color mark sensors lanbao (เซนเซอร์ตรวจจับมาร์คสี)

Built-in RGB three-color light source color mode and color mark mode
The detection distance is 3 times that of similar color mark sensors
The detection return difference is adjustable, which can eliminate the influence of jitter of
the measured object
Light spot size is about 1.5*7mm (23mm detection distance)
Two-point setting method
Smaller size

Model NPN SPM-TNR-RGB , PNP SPM-TPR-RG
